SKU #:

SKU:8-700-TS-TJ-GNJV

sPOD

TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ sPOD

TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ sPOD

Regular price $750.00 USD
Regular price $750.00 USD Sale price $750.00 USD
Sale Sold out
Shipping calculated at checkout.

TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ. sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100% manufactured in the United States since 2006.
The industry leader in power and control solutions.
sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

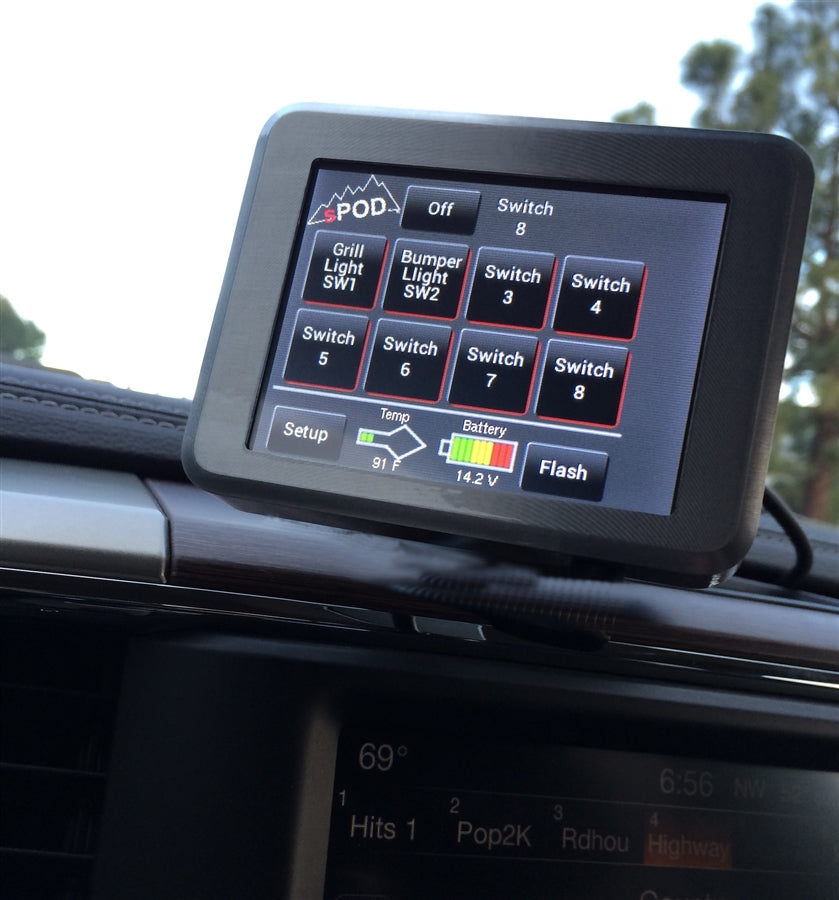

The touchscreen controller is small but packs a BIG punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case with a 1 RAM mount installed on back panel. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.
Note: If you have a 4 cylinder motor, please email us and let us know!
Benifits:

  • Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
  • Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
  • Reduced harness size offers an overall reduction in weight, improving operational efficiency of the equipment.
  • Increase in switch lifecycle over traditional electromechanical switches.

Each switch is programmable for:

  • Dimming
  • Strobe
  • Flash
  • Momentary
  • Switch Linking
  • On Road and Off Road mode of operation

Touchscreen Control Module Features:

  • Voltage feedback (vehicles battery/alternator voltage)
  • SourceSE board temperature feedback (shown on screen)
  • Customization: legends (3 lines of text)
  • Automatic backlighting off after 30 minutes of being inactivity
  • Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
  • One touch off function
  • One second hold on off button shuts all circuits down
  • Automatic system shut down when touchscreen is unplugged
  • Backlight dimming
  • Multiple Source select (One touchscreen can control up to 32 circuits)

Options / parts required:
RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-PSA A-Pillar Mount with 1 inch rubber coated Ram Ball. (For fixed surface mounting and interconnect between double socket arm)
RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-BT Add-on Bluetooth module to enable the system to be controlled by an iPhone, iPad or iPad Mini (Optional)
Note: Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.
