4 Link Front Suspension Brackets With Transmission Crossmember For 12-18 Jeep JKU Bare Steel Motobilt

Ready to transform your Jeep JK Unlimited to a whole different level of suspension capabilities? Wanting to upgrade to 1 ton axles? Check out the Motobilt JKU 4-link Front Suspension Brackets w/Transmission crossmember.

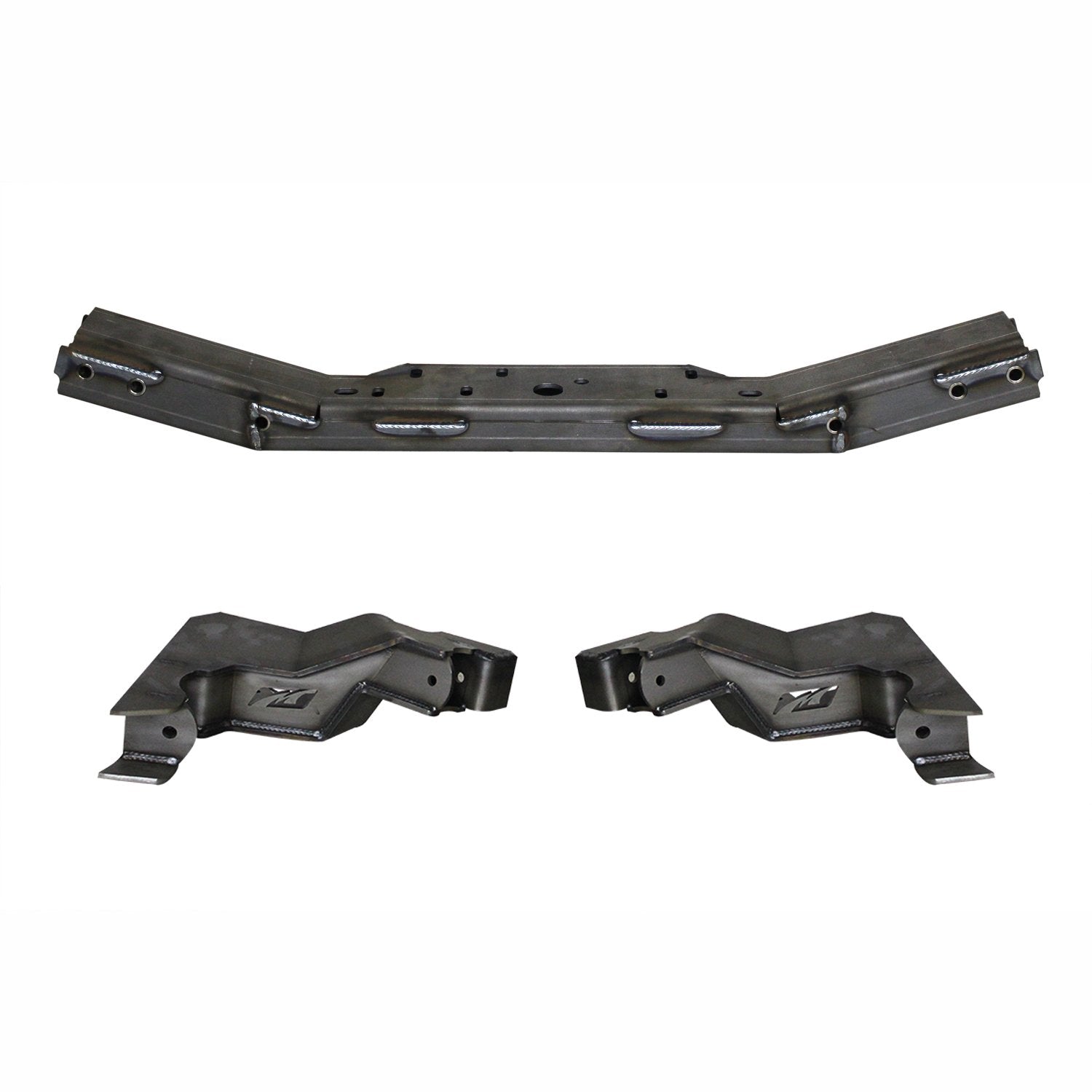

This kit includes a heavy duty removable transmission cross member that replaces your factory cross member, as well as our two front suspension link mount brackets. These front lower brackets are designed to accept 2-5/8 Inch wide joints. The front lower joint holes measure 5/8 Inch diameter which you can drill to a larger diameter, if you choose.

The brackets are designed to accept 2 Inch wide joints. The front upper joint holes measure 12mm diameter which you can also drill to a larger diameter. All front brackets are located using factory frame hole locations for ease of installation. This kit covers JKU models from 2012-2018.

We also offer a full kit, including these front brackets and transmission crossmember, the a heavy-duty 1/4 Inch steel skid plate, rear crossmember and rear link brackets.

Notes:

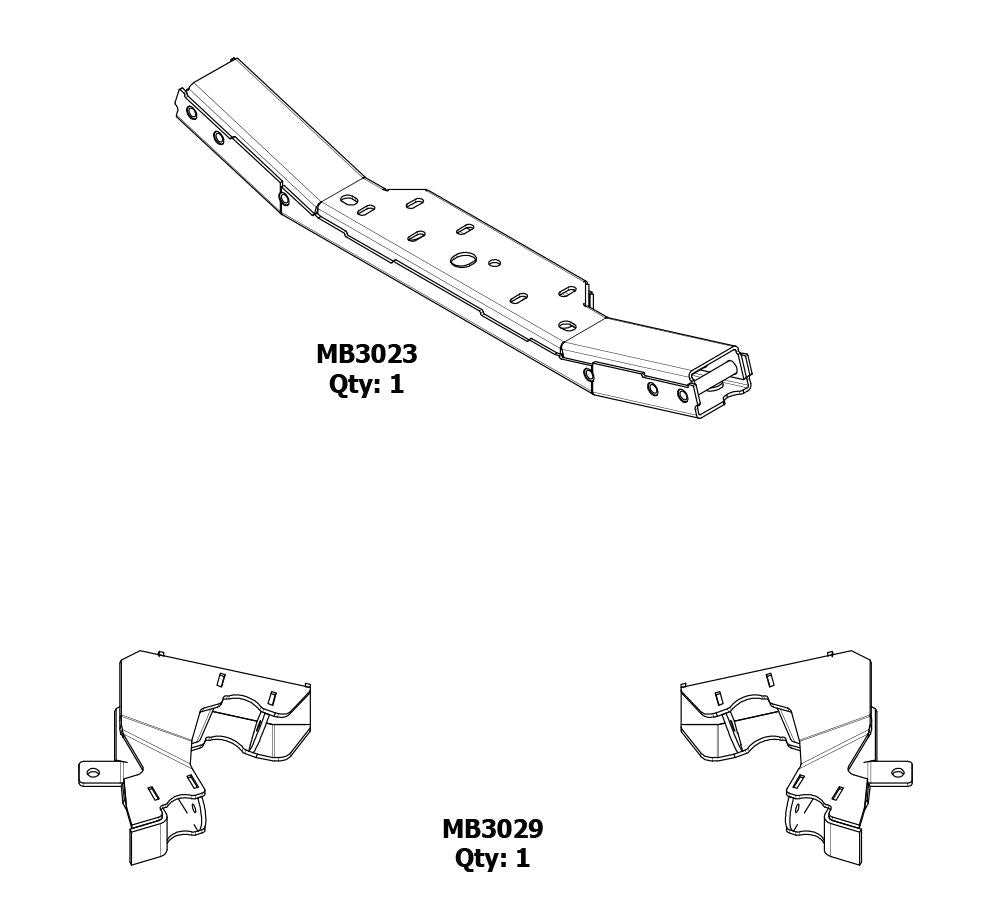

• Includes Two front suspension brackets and transmission crossmember
• 1/4 Steel plate
• Holes can be drilled to accept larger bolts
• Also available as a full kit
