Straight Tab for Poly Bushing

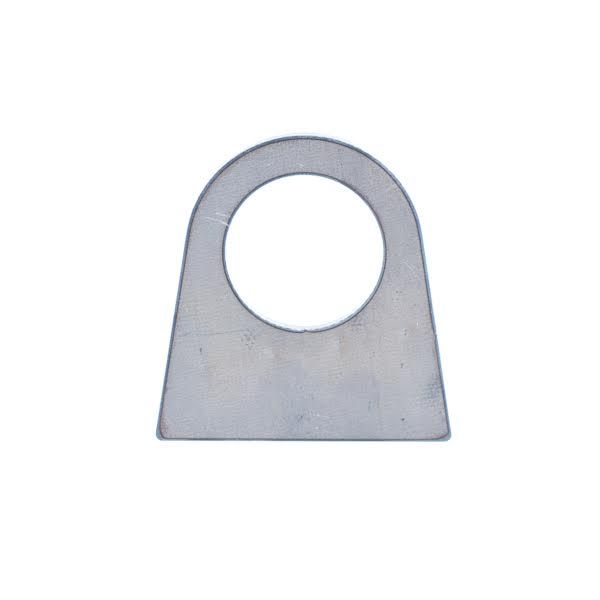

The Motobilt MB2090 is a straight tab for mounting spring eye bushings. This tab is CNC cut from 1/4 inch steel plate. Made to fit 1.75 inch OD round tube. Using two of these tabs will allow you to mount a leaf spring bushing on just about anything.

The tab is 3.5 inch wide at the base. From the center of the hole to the bottom of the tab is 2.0625 inch. This extra length allows you much flexibility in mounting. You can cut the tab down, put a bend in it, cut it at an angle, or even notch it to fit your application.

Features:

Straight Tab for Mounting Spring Eye Bushings

CNC cut from 1/4 inch steel plate

Fit 1.75 inch OD round tube

3.5 inch wide at the base

Center of the hole to the bottom of the tab is 2.0625 inch

Sold as each

Some uses are:

Shackle mount

Motor mount

Crossmember mount

Control arm mount

Roll cage mount

The possibilities are endless!

Note:

Require at least 2 typically for a mount

Tube and bushing are not included
