Rockwell Diff Skid Motobilt

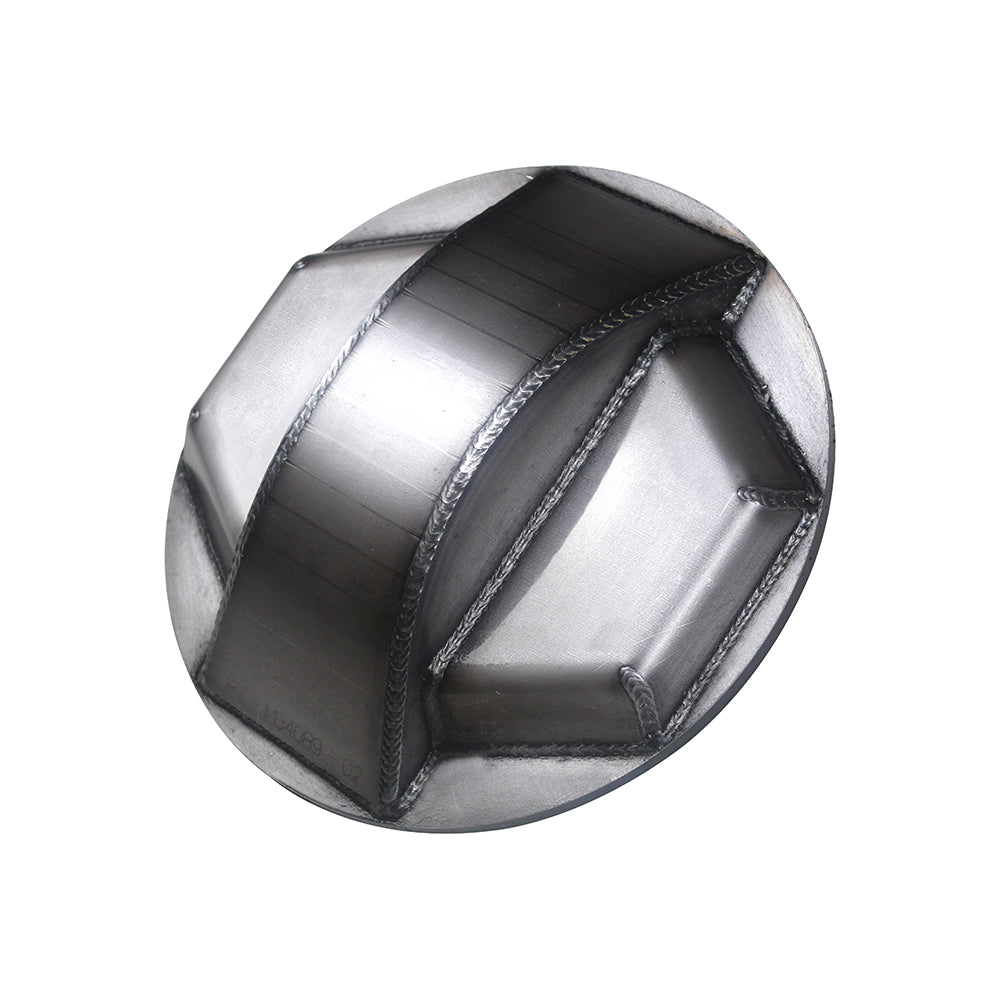

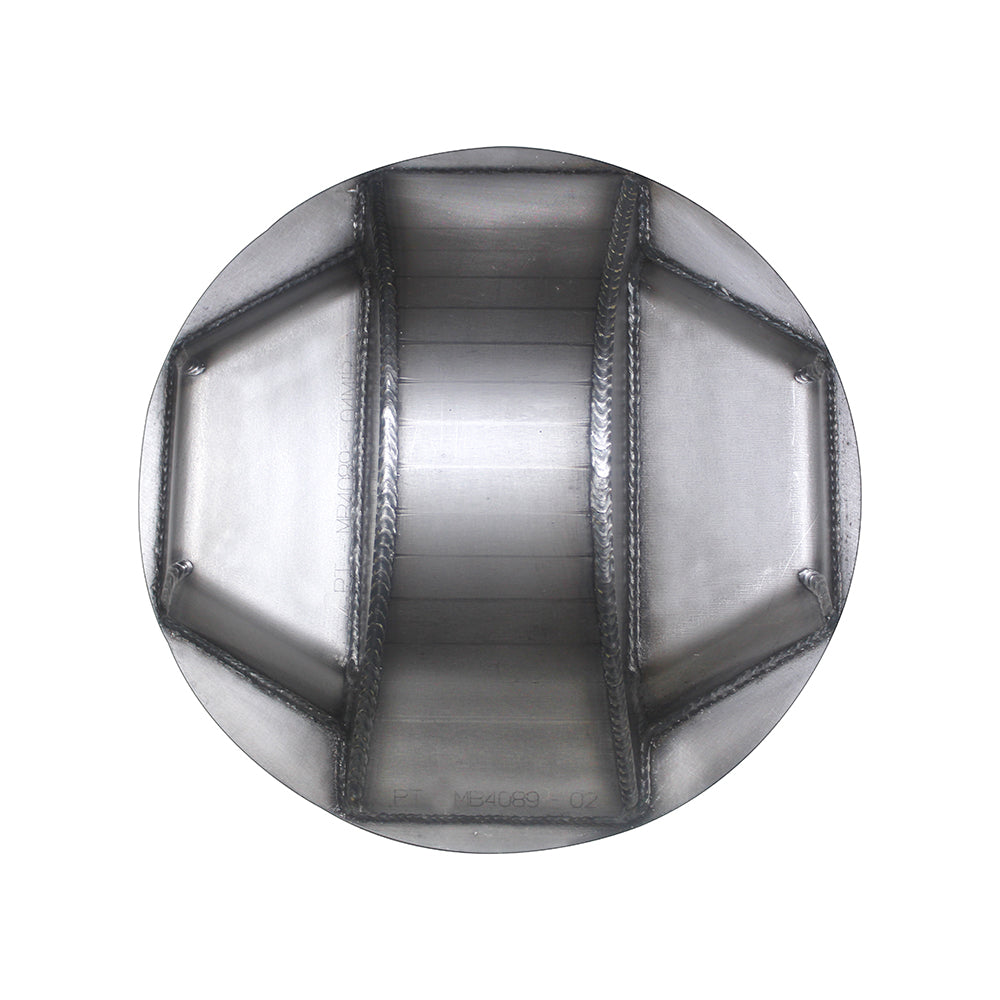

The Motobilt Rockwell 2.5 Ton Axle Diff Cover Skid is designed to take abuse.The cover is laser cut and formed from a combination os 0.375 inch and 0.25 inch high strength steel plate. The curved 0.375 inch steel ring around the bottom of the ring gear is o?=o?= bump bent on the press brake to provide a smooth surface to slide over obstacles like rock and mud.

The side caps over the carrier bolts are laser cut and CNC formed from 0.25 inch steel plate. The main ring that welds to the housing is laser cut from 0.375 inch steel plate. The cover ships welded inside and out to your door bare steel.

Installing the diff skid is straight forward. Remove the center diff from the Rockwell housing and then cut the bottom rounded dome off. Position the diff back in and rotate the axle so you can see where to place the diff cover / skid. Tack in place and then remove the 3rd member from the housing. Weld completely. The ring gear does not need to be machined down for the cover to fit onto the Rockwell 2.5 ton axle housing.

The Motobilt Rockwell 2.5 Ton Axle Diff Cover / Skid does not include a drain plug. Our thought is this is a failure point when rock crawling. We do offer an optional bung and plug that the installercan drill out the cover and install if needed.

Motobilt fabricates all of our products including fabricated diff covers in house utilizing our 10k fiber laser and CNC press brakes. Our fabricated diff covers have a lifetime warranty. If you damage our diff cover we will replace it. Made in the USA.

Details:

• Warranty Lifetime Warranty
• Finish Bare
• Material Steel
• Thickness 0.25 inch;0.375 inch
• Cut CNC Laser Cut
• Formed CNC Formed
• Pound Rating 2.5 Ton
