Dana 35 Spring Perch 2.5 x 2.5 inch Motobilt

When building or updating leaf spring axles, at some point you may need to add or replace damaged or worn out spring perches.

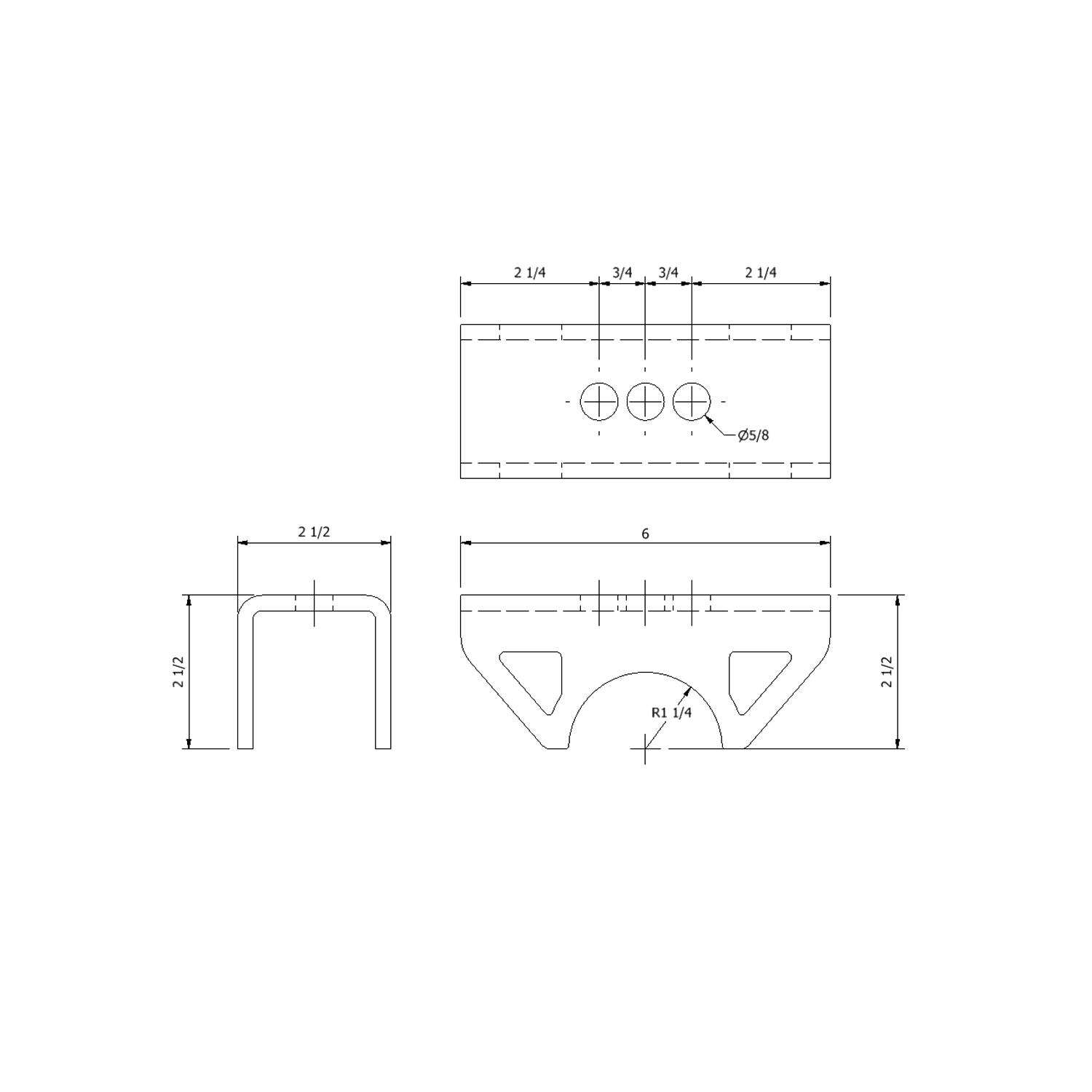

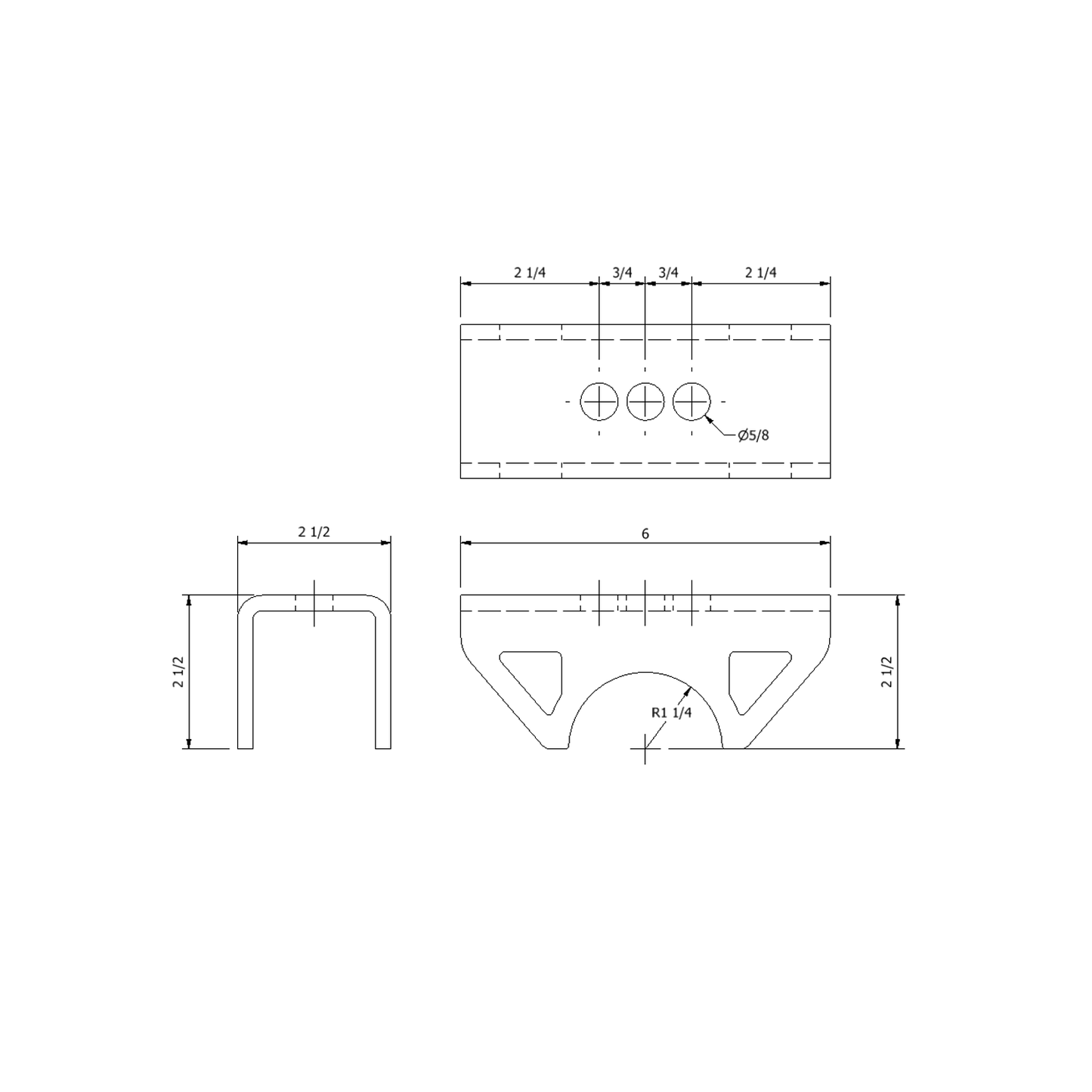

This weld-on kit is designed for axle tubes measuring 2-1/2 inch outside diameter. These work well when installing a spring over onto a Dana 35 rear axle. The top mounting surface measures 6 inch x 2-1/2 inch and includes three (3) 5/8 inch diameter holes.

The extra holes allow you position your leaf spring either on the center of the axle tube, 3/4 inch forward of the axle tube or 3/4 inch rearward of the axle tube. The top mounting surface sits 2-1/2 inch above the center of the axle tube.

• The spring perches are constructed from 1/4 inch thick high grade steel and professionally formed using a CNC press brake.

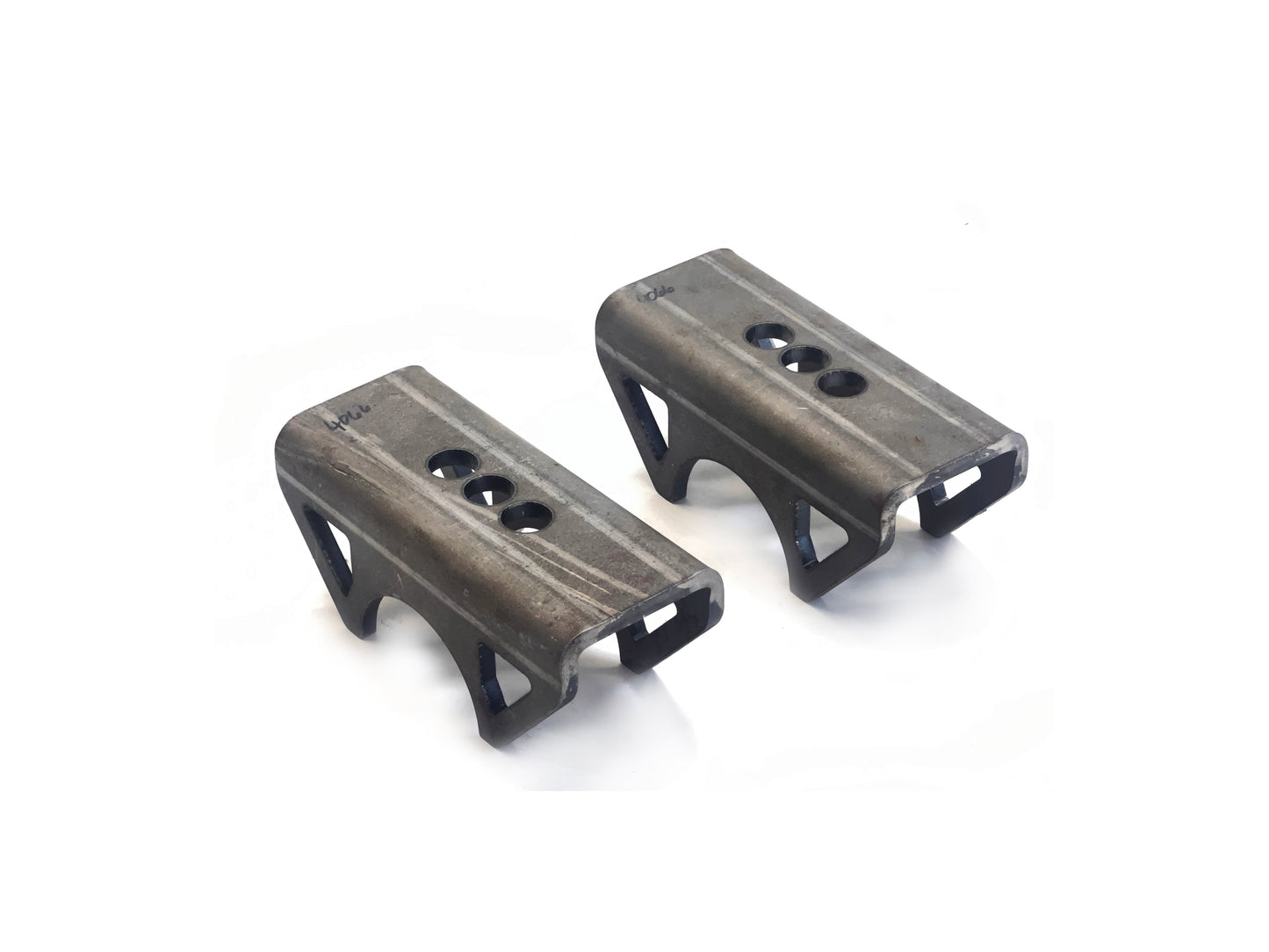

• Product ships as a pair as raw steel and require welding to your axle tubes.
